Teseq NSG 435

16kV ESD Simulator

ESD SIMULATOR – Compact and Cost Effective

  • Programmable discharge voltage 200 V to 16.5 kV
  • Stabilized charging voltage
  • Pre-programmed IEC/EN 61000-4-2 test settings
  • True air-discharge breakdown voltage
  • Compact and lightweight design

Quick Enquiry

If you want to know more about Teseq NSG 435
16kV ESD Simulator

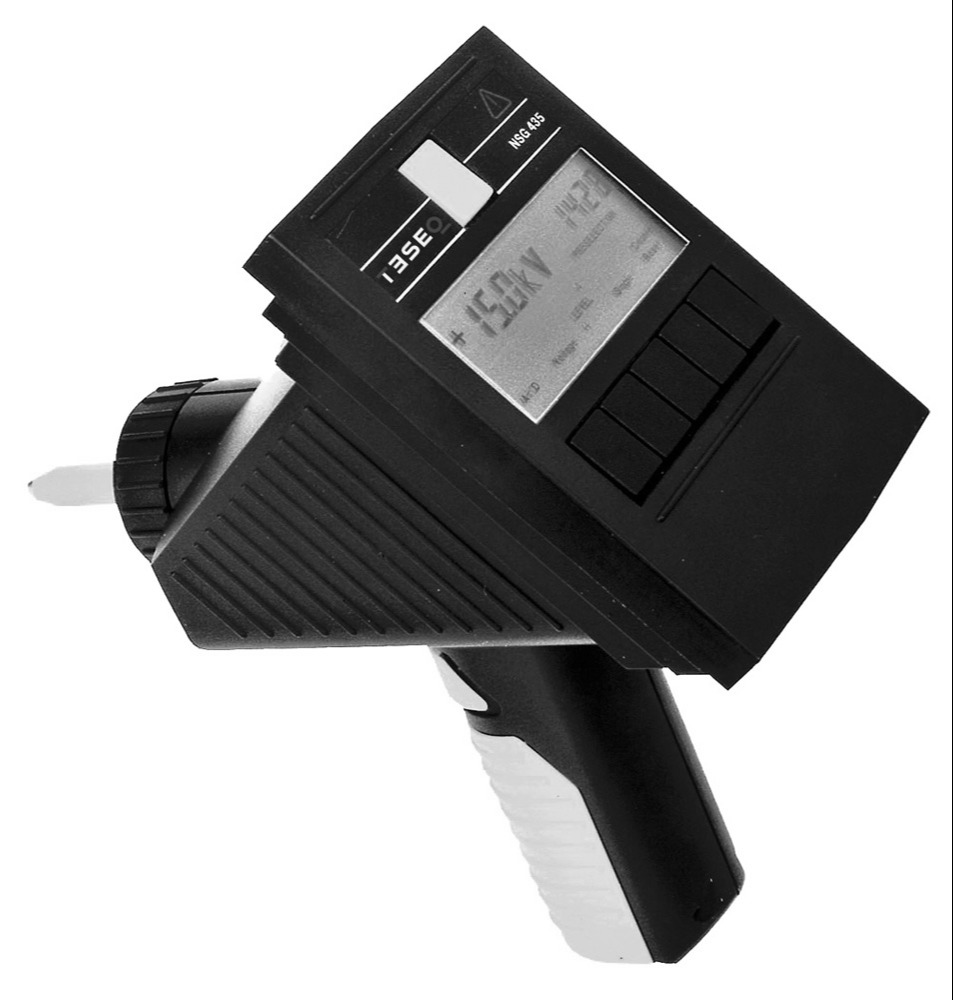

Ergonomic design and advanced functionality. The pistol-shaped NSG 435 simulator is designed to sit comfortably in the operator’s hand, with current operating conditions constantly displayed and clearly visible.

NSG 435’s microprocessor-based controller and multifunction keypad provide the operator with instant access to its comprehensive range of built-in functions. The LCD panel continuously displays the operating status and all user-selected test parameters.

NSG 435 has its own internal, battery operated high voltage generator. In addition to the pre-programmed, standard IEC pulses, the user can create custom tests using single or repetitive discharges with selectable rates and manual or automatic polarity switching. An optional mains supply is available for extended test operation or for use when the battery is being charged.

Parameter Value
Basic set Carrying case with: electrostatic discharge simulator, battery pack, battery charger 100 to 240 VAC, discharge network 150 pF/330 Ω, air- and contact-discharge tips, grounding cable, tripod adapter, user manual
Pulse
network
Network 150 pF/330 Ω as per IEC/EN 61000-4-2 (included)
Range of R/C networks for other standards: R = 0 Ω to 10 kΩ; C = 60 to 500 pF
Discharge voltage Air-discharge: 200 V to 16.5 kV (in 100 V steps)
Contact-discharge: 200 V to 9 kV (in 100 V steps)
Discharge
tips
Ball and point as per IEC
Charging voltage measurement kV, accuracy better than ±5% (stabilized); measurement and display of true air flashover voltage
Discharge detection Indicated by an oval around the kV symbol, also acoustically in the ‘Single’ operating mode (air-discharge only)
Holding time >5 s (charging voltage … ±5%)
Polarity Positive / negative / automatic change
Operating modes Single / repetitive =
pulse counter: 0 to 9999, preselect counter 0 to 9999
Repetition: 0.5/1/5/10/20 or 25 Hz (air); 0.5/1/5 or 10 Hz (contact);
continuous operation
Display LCD panel showing: charging voltage, discharge voltage, polarity, air-/contact-discharge, counter/preselect counter content, soft-key functions, battery monitor
Weight NSG 435 with battery: 1.2 kg (2.6 lbs) approx.
Ambient conditions Operation: +5 to +40°C, 20 to 80 % r.h. (non-condensing), 68 to 106 kPa
  • EMC Directives
  • UN ECE R10 (Automotive)
  • IEC/EN 61000-4-2
  • EN 61000-6-1
  • EN 61000-6-2
  • EN 300386-2
  • EN 301489-1
  • EN 301489-7
  • EN 301489-17
  • EN 301489-24
  • IEC 61326
  • ITU-T K.20
  • ITU-T K.21
  • ITU-T K.28
  • ITU-T K.41
  • ITU-T K.44
  • ITU-T K.45

Teseq NSG 435 Datasheet

Teseq ESD Brochure

Calibration target set CTR 2 for waveform verification as per EN/IEC 61000-4-2

The CTR 2 calibration target and its accessories like 20 dB attenuator and coaxial cable forms the set to verify the ESD waveform as requested by the standard EN/IEC 61000-4-2. The 2ohm target is built following the specification of the standard.
By means of the 50ohm adapter line CTR 2-AD the performance of the CTR 2 can be verified using a spectrum analyser.

Accessories to set-up a complete ESD test area

To set-up an ESD test area accessories like vertical coupling plane ( VCP ) ,  grounding set ( EAS 30 ) and even an ESD table with HCP and Ground reference plane are offered.
