| Frequency range (nominel): | 9 kHz – 2 GHz |
| Noise figure: | 2.7 dB (1.0 GHz) |

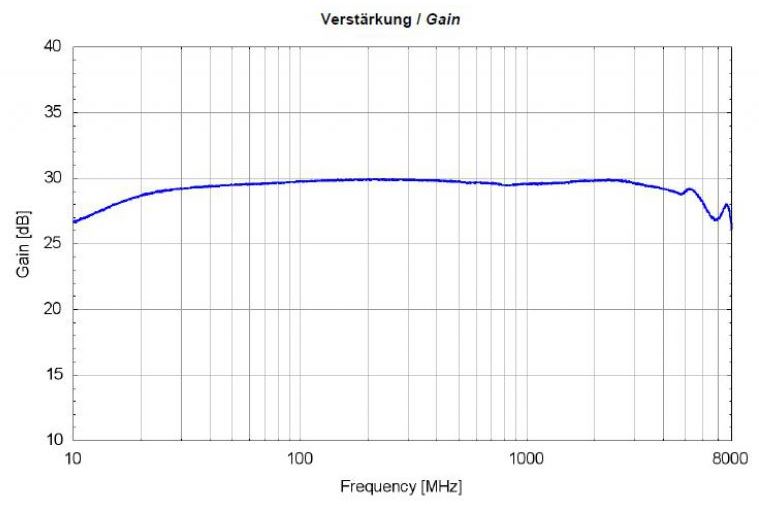

| Gain: | typ +29 dB |
| Amplitude flatness: | < +/- 3 dB |
| 1 dB compression point at input: | > -17 dBm |
| Impedance: | 50 Ω |
| VSWR input / output: | < 2 : 1 |
| Ambient temperature: | -10°C … +60°C |
| Power suppley: | + 12V-16V 120 mA |
| Material of the housing: | Aluminium |
| Housing dimensions: | 42 x 28 x 29 mm |
| Overall dimensions: | 85 x 36 x 29 mm |
| Weight: | 130 g |
